Manifolds

Manifolds

Our Range

Using only the best quality equipment for in floor hydronic heating systems is absolutely essential for both the longevity and efficiency of the system. Hurlcon Hydronic Heating supply ITAP & SBK manifold equipment to achieve this.

Beretta Meteo Green HE 35 Pre-Mix Condensing Wall Hung Hydronic Boiler

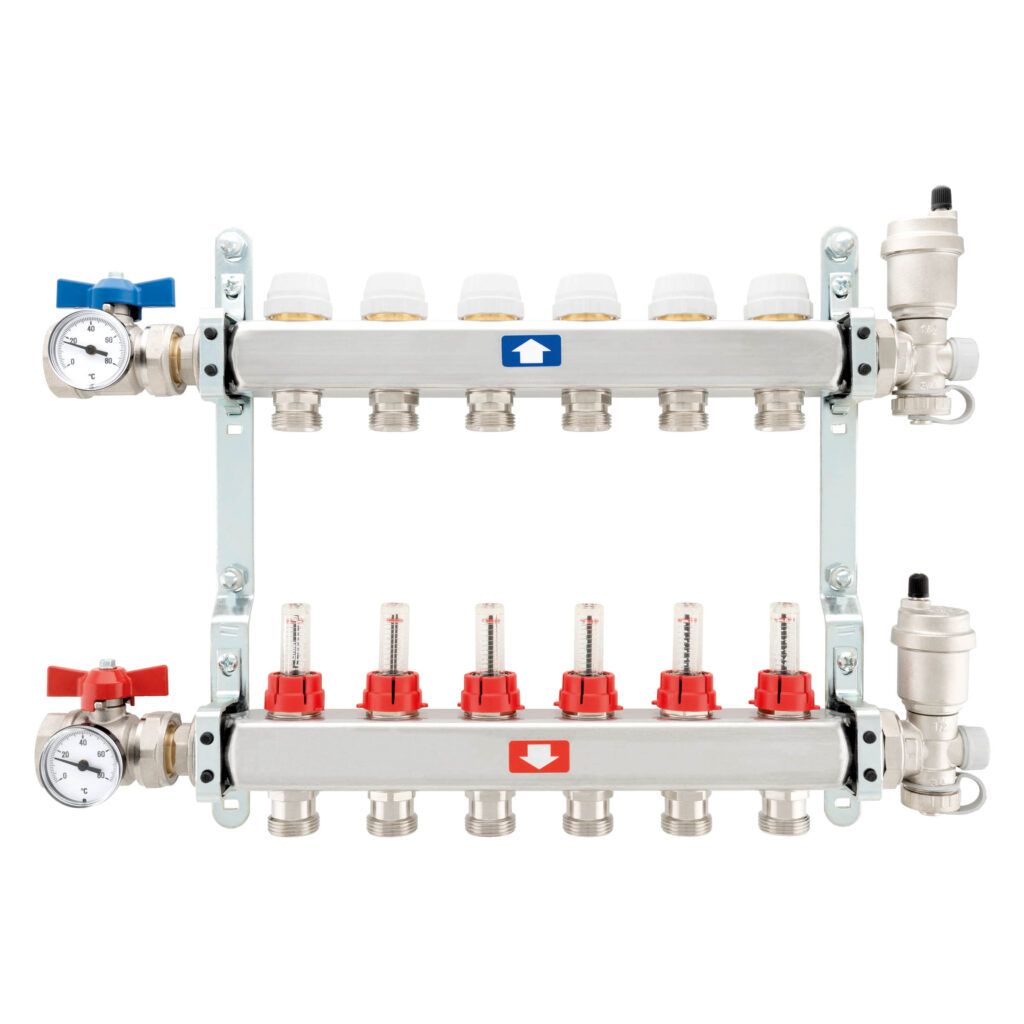

ITAP Stainless Steel Pre-Assembled Manifold

Hurlcon Hydronic Heating is Australia's leading supplier of ITAP products, one of the leading Italian manufacturer of valves, fittings and distribution manifolds for plumbing and heating systems. Their products have obtained approvals by more than 30 certification bodies from all over the world, which is made possible by the attention quality during the entire production cycle.


These pre-assembled manifolds consist of:
– 1 return manifold in stainless steel AISI 304L with shut-off valves preset for

   electrothermal actuators

– 1 flow manifold in stainless steel AISI 304L with flow meters

– 2 complete metal brackets

– 2 shut-off ball valves with thermometers

– 2 end pieces with air vent valve and drain cock– Available on demand with deeper

   mounting brackets art. 498ST without extra-charg

Beretta Power Plus Pre-Mix Condensing Boilers Light Commercial

SBK Multizone 3000

SBK's German engineers have developed the ingenious Multizone system 3000 which allows you to control 2-3 zones from one actuator, giving greater flexibility with zoning, as well as significant cost savings.

SBK offer a 5 year warranty against manufacturing defects.
Beretta Power Plus Pre-Mix Condensing Boilers Light Commercial

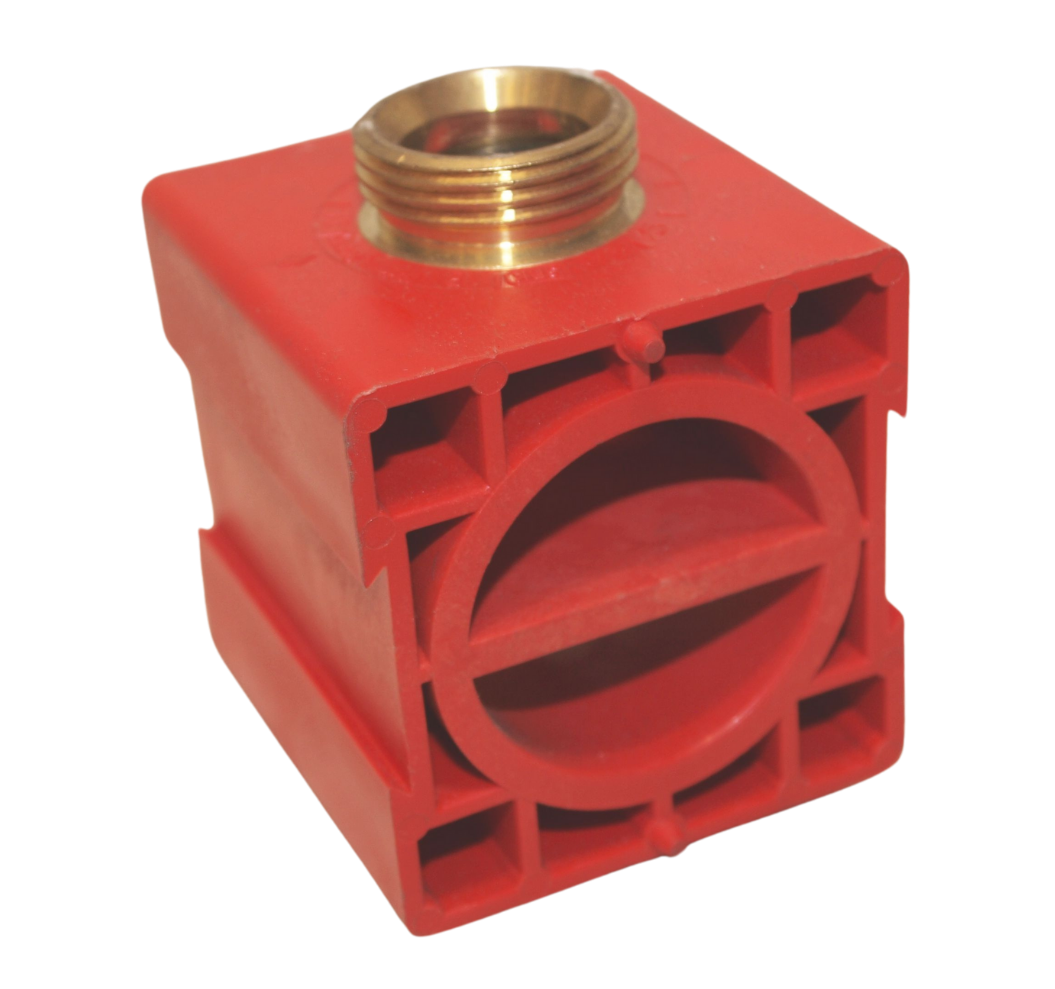

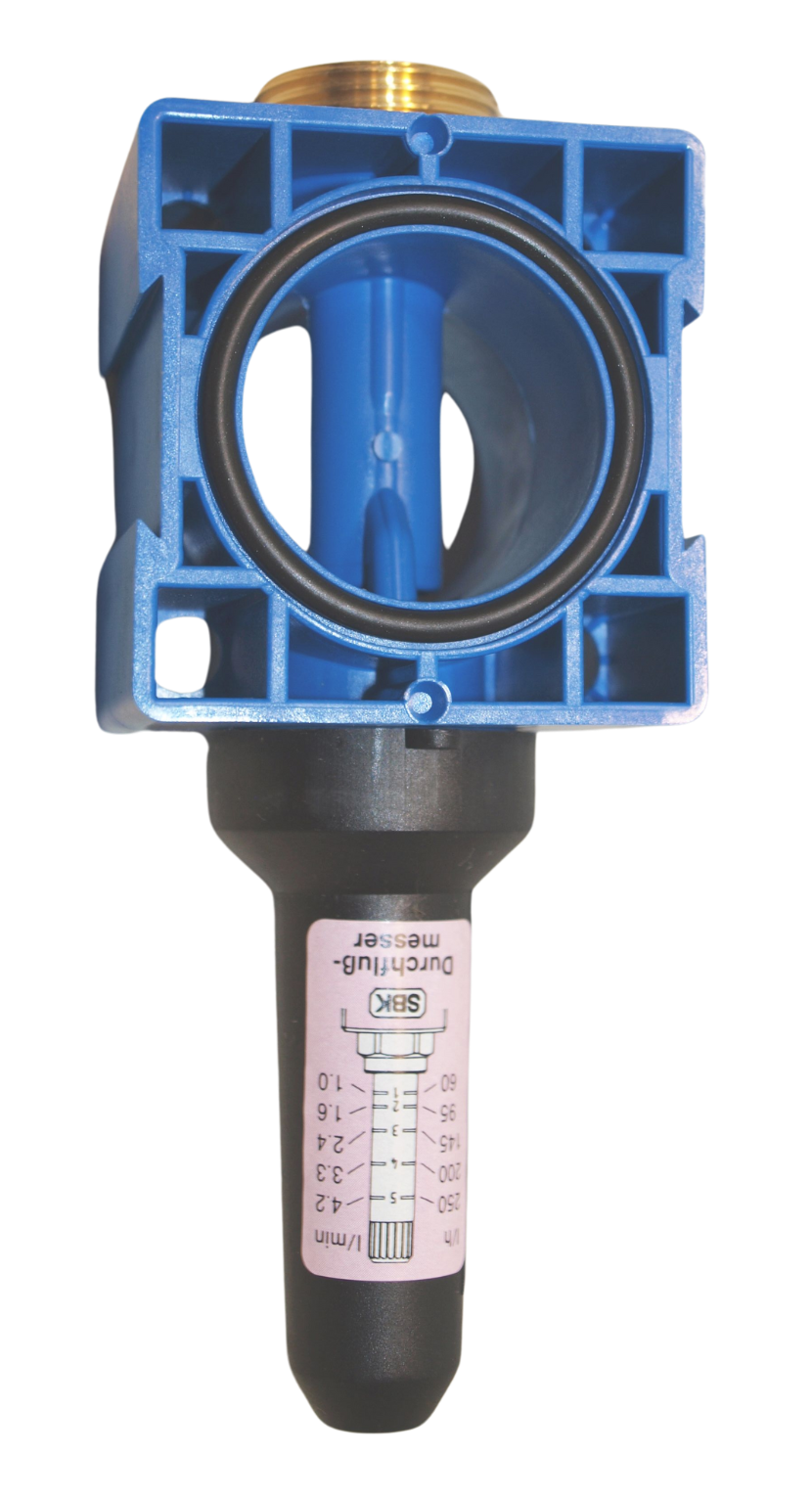

SBK Modular Manifold Systems

The German designed and manufactured SBK Modular Manifold System is comprised of individual ‘blocks’ which can easily be assembled to the required number of heating circuits and allows for fast on-site alteration to circuit numbers as well. Blocks are coloured coded for flow (Red) and return (Blue) piping, and are available as plain blocks or with flow control valves and flow meters.

Flow control valves can be quickly removed to allow for thermal actuators in zone controlled systems, and the SBK patented flow meter allows for easy and accurate flow adjustment. Constructed from glass reinforced plastic with a multi-chamber design, the manifold blocks are corrosion resistant and have inbuilt insulating properties. This means greatly reduced heat losses for heating systems and less risk of condensation in cooling systems. The individual blocks are reversible allowing pipe circuits to be directed upwards if required, and the internal geometry results in a minimum pressure drop through the manifold system.

SBK offer a 5 year warranty against manufacturing defects.
